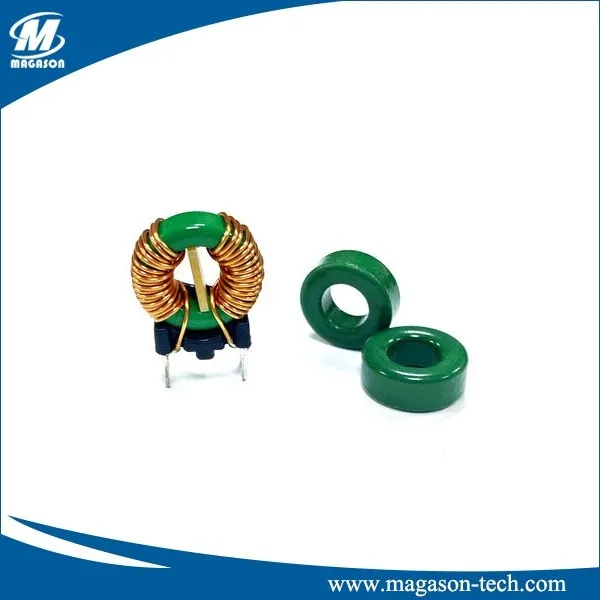

Merritli halqalar magnit xususiyatlarini namoyish etadigan keramika birikmalari. Materiallar temir, nikel-rux yoki marganets-rux oksidlaridan iborat bo'lib, materiallardir. Ferriting Croes donut shaklidagi yoki silindrsimon shaklidagi ferritliklardir.
Merrit ashyolarning maqsadi joylarda joylashtirilgan shovqinni bostirishdir. Ferriting Cadessiyalar nafaqat shovqin, balki shovqin, krosstal va boshqa yuqori chastotali buzilishlar, ma'lumotlar signallari va yer tekisliklari. Fermit Cores ko'pincha parasitli teskari va elektr tarmog'ini o'zgartirishni boshqarish uchun tuman taxtalarida qo'llaniladi.
Ferriting Qo'ng'iroqlarining afzalliklari
- Tashqi magnit maydonlarga yuqori chidamliligi va magnit samaradorlikni ta'minlaydi.
- Ularning yagona kesishmalari, engil vazn va kichik o'lchami tuman taxtada band bo'lgan hududni kamaytiradi.
- Ferrite Ring yadrolarining toroidal shakli magnit funkini osongina olib tashlaydi, shuning uchun nurlanish imkoniyatini kamaytiradi.
- Ekologik toza.
- Kam yo'l-yo'riq samaradorligini oshiradi, shuningdek, temir uzuklar inobonlari qo'llaniladi.
| Croes turi | O'lchamlar (mm) | Samarali parametr | Al qiymati | ||||||||
| D1 | D2 | H | Ae (mă) | LE (mm) | Va (mm³) | P3 | H6K | H8K | H10K | Og'irligi (g) | |
| T2.54x1.27x1.27 | 2.54±0.2 | 1.27±0.15 | 1.27±0.15 | 0.075 | 5.531 | 4.268 | 440±20％ | 880±20％ | 1320±20％ | 1761±20％ | 0.03 |
|
T3.05x1.27x1.27 |
3.05±0.25 | 1.27±0.15 | 1.27±0.15 | 1.037 | 5.99 | 6.211 | 570±20％ | 1112±20％ | 1668±20％ | 2224±20％ | 0.04 |
| T3.5x1.78x1.78 | 3.50±0.25 | 1.78±0.20 | 1.78±0.20 | 1.433 | 7.62 | 10.919 | 570±20％ | 1168±20％ | 1752±20％ | 2336±20％ | 0.05 |
| T3.94x2.24x1.27 | 3.94±0.3 | 2.24±0.2 | 1.27±0.15 | 1.052 | 9.196 | 9.677 | 360±20％ | 739±20％ | 1078±20％ | 1438±20％ | 0.05 |
| T4x2x1 | 4.0±0.3 | 2.0±0.2 | 1.0±0.1 | 1.0 | 9.06 | 9.06 | 330±20％ | 690±20％ | 970±20％ | 1400±20％ | 0.06 |
| T5x3x2 | 5.0±0.3 | 3.0±0.3 | 2.0±0.2 | 2.0 | 12.3 | 24.6 | 470±20％ | 1000±20％ | 1400±20％ | 2000±20％ | 0.14 |
| T6x3x2 | 6.0±0.3 | 3.0±0.3 | 2.0±0.2 | 3.0 | 14.1 | 42.4 | 660±20％ | 1400±20％ | 1950±20％ | 2800±20％ | 0.21 |
| T8x4x3 | 8.0±0.3 | 4.0±0.3 | 3.0±0.2 | 4.5 | 20.4 | 91.9 | 1030±20％ | 2070±20％ | 2910±20％ | 4150±20％ | 0.56 |
| T9x5x3 | 9.0±0.3 | 5.0±0.3 | 3.0±0.2 | 6.1 | 22.0 | 134 | 850±20％ | 1800±20％ | 2500±20％ | 3500±20％ | 0.60 |
| T10x6x3 | 10.0±0.3 | 6.0±0.3 | 3.0±0.2 | 6.1 | 25.1 | 153 | 740±20％ | 1550±20％ | 2150±20％ | 3050±20％ | 0.90 |
